178482-1
Manufacturer:
TE Connectivity
Mfr.Part #:
178482-1
Datasheet:
Description:

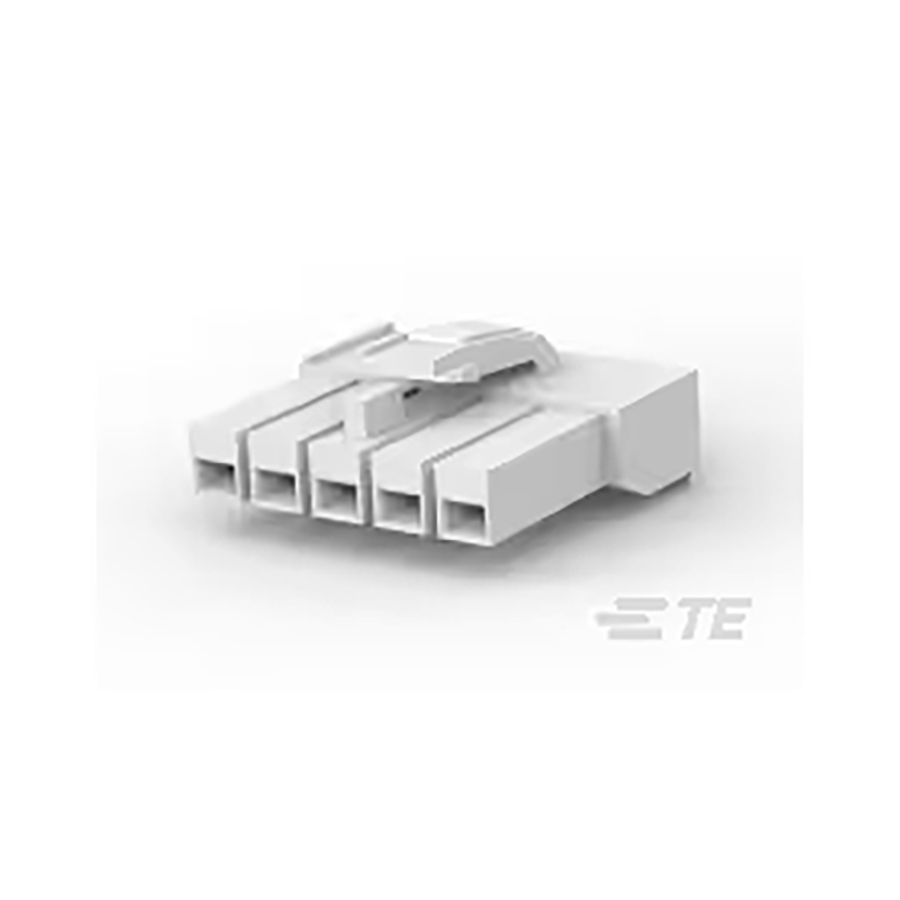

Headers and Wire Housings Cable, Free Hanging Socket Number of Positions:5 Pitch:3.9624 mm
| Parameter | Value |
|---|---|
| Length | 17.018 mm |
| Width | 9.65 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 9.7 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 19.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Pitch | 3.9624 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 5 |
| Connector Type | Socket |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 7 A |
| Housing Color | Natural |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
